6Volt S23PX PX23 Battery Adapter for Sennheiser U23PX EPX23 V23PX 4F16 4NR42

PX23 battery adapter including 4xLR43

PX23 battery adapter including 4xLR43

The battery adapter replaces the expensive 6 volt cell with replaceable button cells

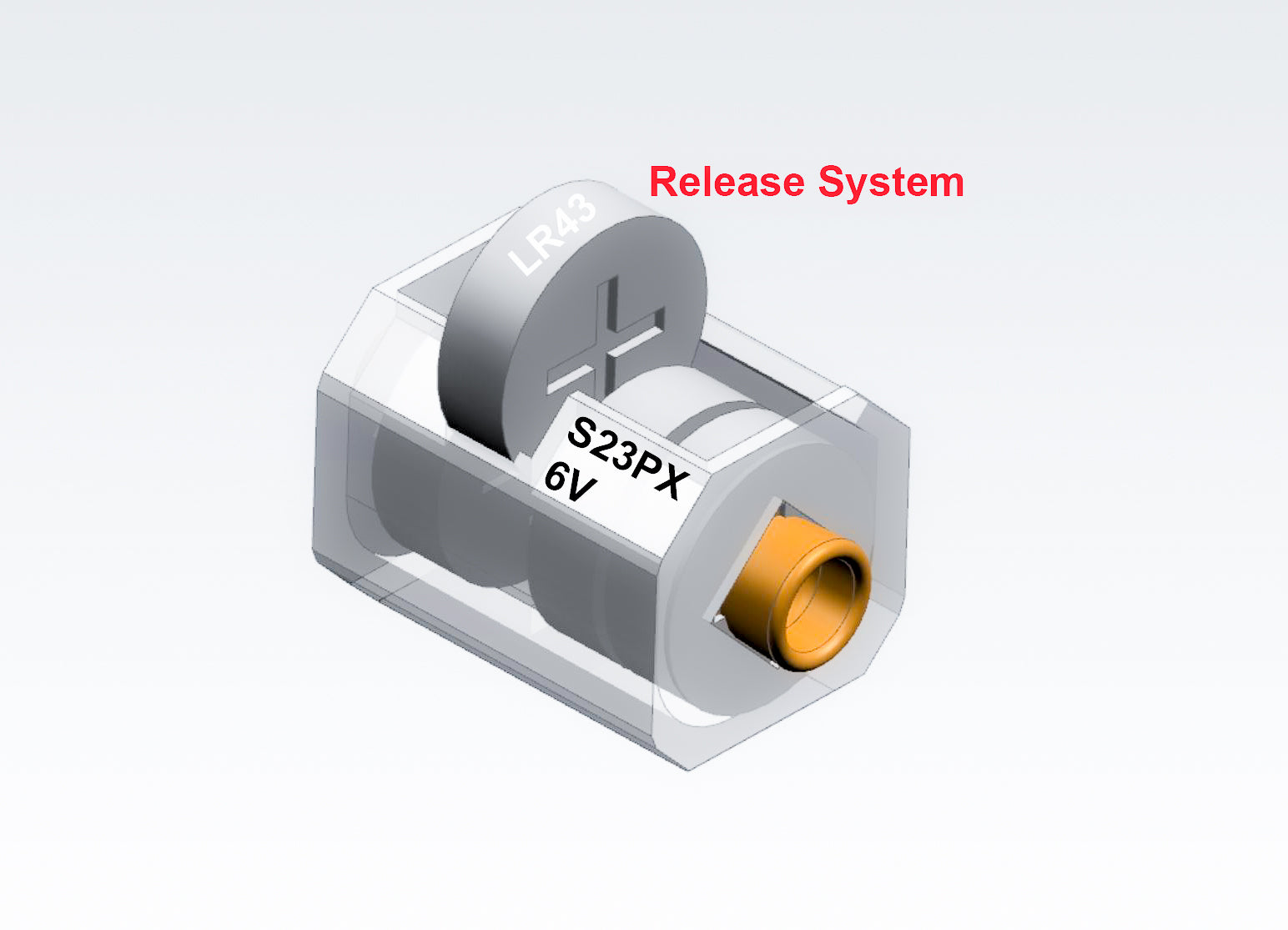

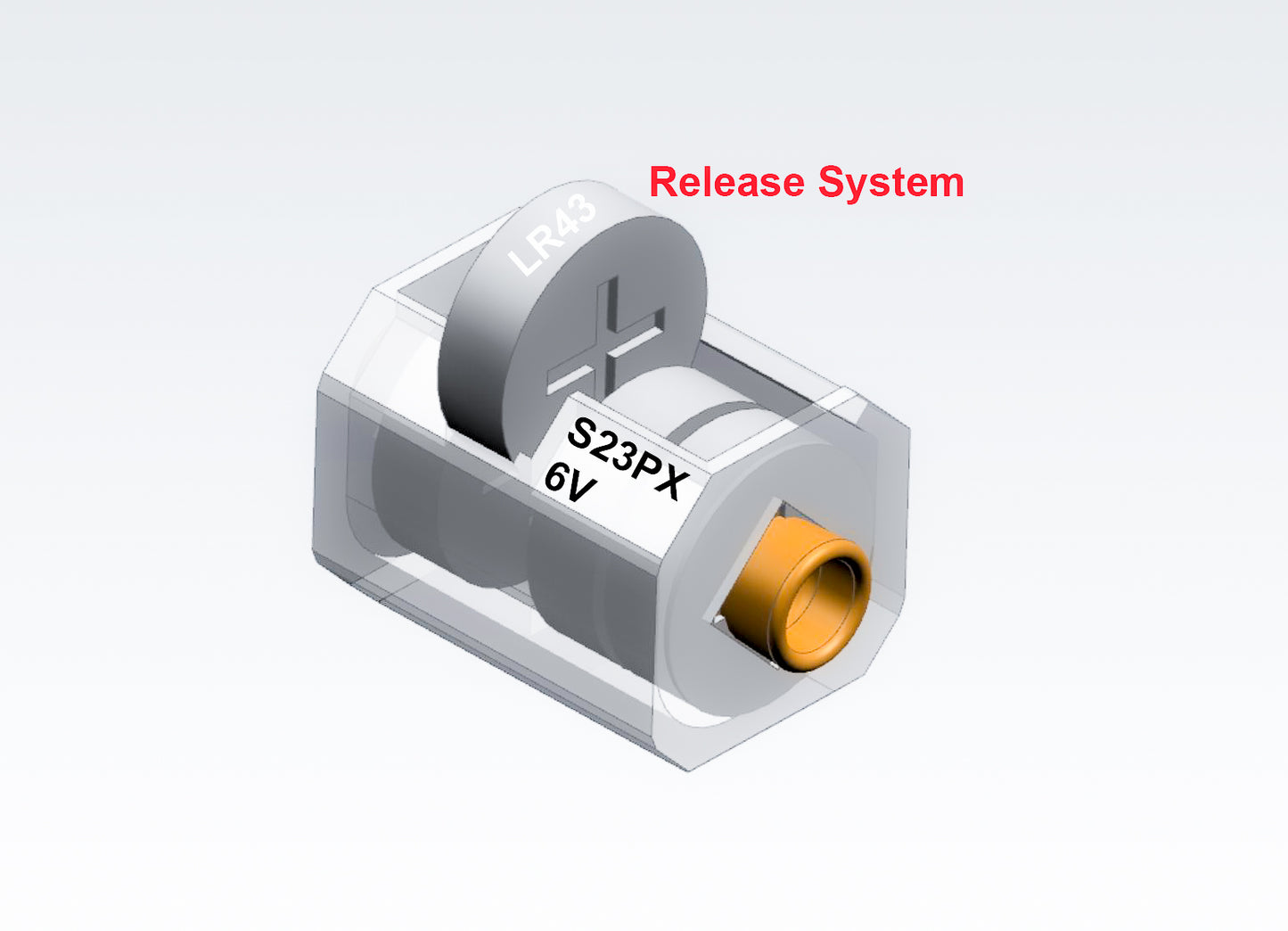

Replaces the expensive 6 volt Mallory battery including release system

Other common names are:

U23PX, 4SR42, Mallory PX23, PX23, PX23S, RPX23S, S23PX, EPX23, No. 434, 4F16, 4NR42, Interstate Batteries ADRY4040

Compatible for:

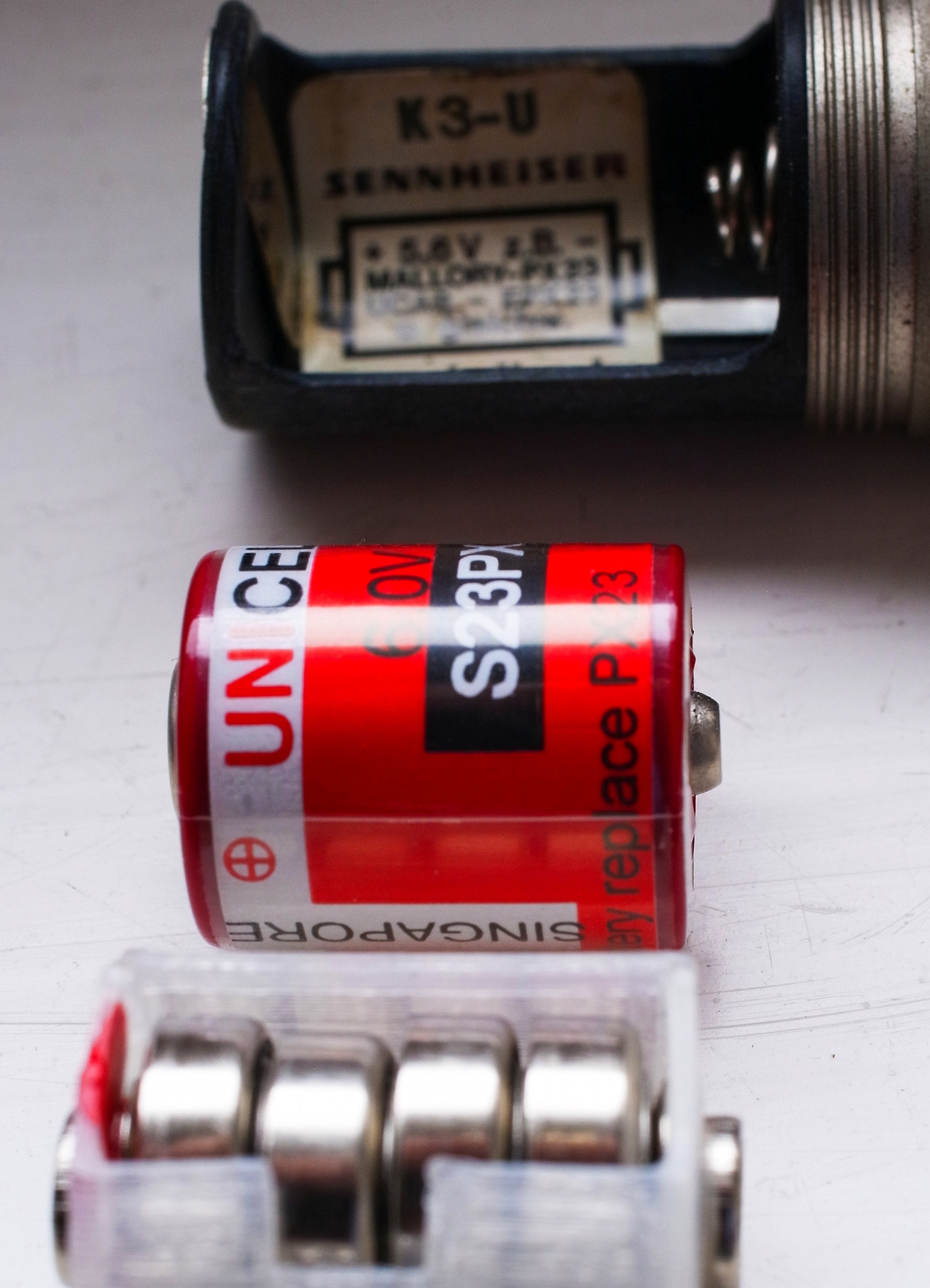

• Sennheiser Microphones
• Retina S2 Flash
• K3U
• K3-U
• K3-N/ME20
• K30AV
• AKG CE1 SE5E-10 microphone

 Technical data / datasheet :

• L=20.5 mm / D=15 mm / tolerance +-1 mm
• Voltage 6 volts
• Capacity approx. 80 - 110 mAh (depending on manufacturer)
• Cell type 4xLR43 included

Description:

• CAD copy of a PX23 / CAD Copy of S23PX
• 3D printing adapter/ 3D print
• Interchangeable LR43 included
• Documentation and test report
• Color deviation from the product image possible / Color deviation possible
• Ready to use
